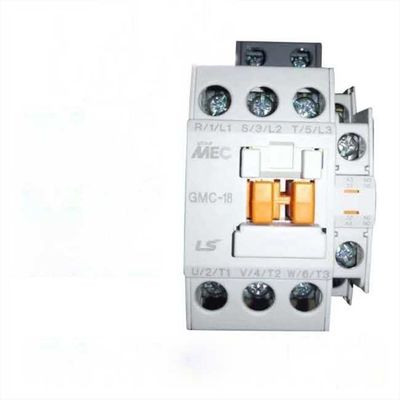

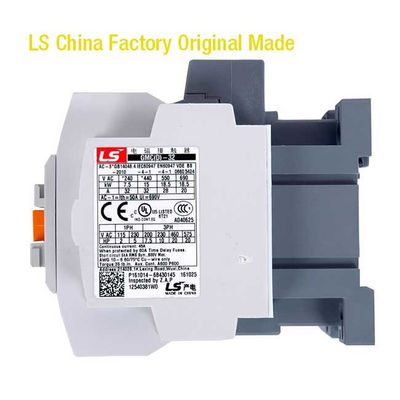

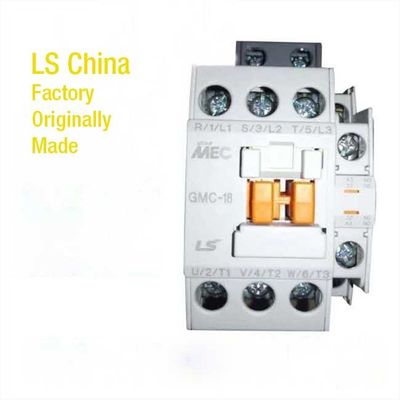

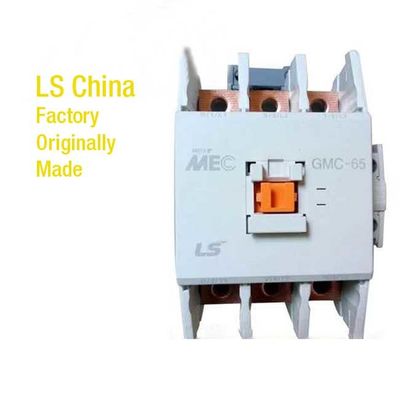

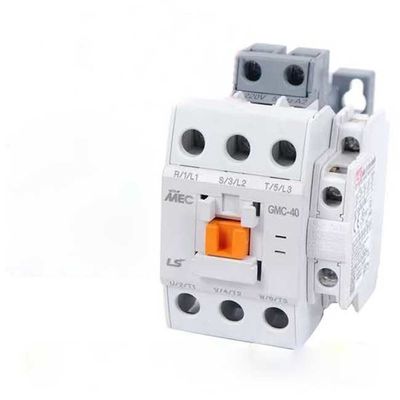

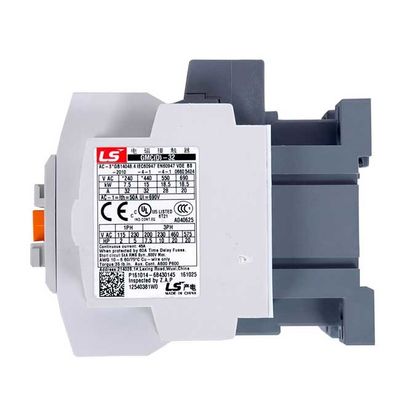

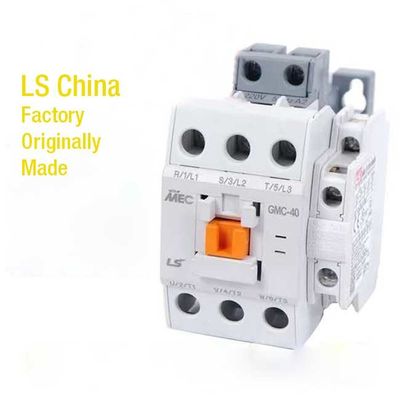

LS GMC Kontaktor 3P 4P 9A 12A 18A 32 40A 50A 65A 75A 85A AC-3 AC-1 Sangat Terintegrasi
Product Details
| Peringkat arus utama: | 9-85A | Jenis listrik: | AC, AC / DC |
|---|---|---|---|
| Tegangan rating rangkaian utama: | 600V, 220V, 380V, 110V, 24V | Jumlah tiang: | 3,4 |
| Tahap: | 3,1Phase | frekuensi: | 50 / 60Hz |
| Nama Produk: | Ac Contactor CJX2N-D09,3 tiang Ac Contactor | Populer saat ini: | 85A |
| Standar: | IEC60947, EN / IEC60947-4-1 | ||
| Menyoroti |
saklar kontaktor ac,kontaktor ac rumah |
||
Product Description
ciri
• Kisaran saat ini 09 ~ 85A;
• AC, koil kontrol DC adalah opsional;
• Berbagai jenis starter tersedia: kontaktor start motor standar, kontaktor reversibel, starter star-delta, starter autotransformer, dll.
• Koneksi opsional: koneksi baut (09 ~ 8000A);
• Sertifikasi Produk: CCC, CE, CCS;
Keuntungan
• Instalasi kompak
> Instalasi penekan lonjakan tidak memerlukan alat dan dapat dimasukkan langsung ke kontaktor tanpa mengambil lebih banyak ruang
> Kontaktor yang dapat dibalik hanya selebar 90mm, penguncian mekanis tidak membutuhkan ruang ekstra, pemasangan hampir tidak memerlukan waktu
> Komponen starter menyediakan modul pra-kabel untuk perakitan cepat dan mudah
• Sangat terintegrasi
> ke 100A integrasi kontaktor 1 biasanya terbuka / 1 kontak bantu biasanya tertutup
> Koil DC dengan dioda penekan dua arah bawaan
> Grup kontaktor reversibel dengan dioda penindasan dua arah bawaan
• Aman dan andal
> Rangkaian utama dan sirkuit kontrol dari komponen kontrol dan perlindungan dibedakan secara jelas
> Desain kontak cermin yang memenuhi standar keselamatan, memastikan 10 juta tindakan yang dapat diandalkan
> Tutup pelindung mencegah kontak kontaktor yang tidak disengaja
• kualitas luar biasa
> Kumparan DC memiliki berbagai tegangan kontrol (0.7 ~ 1.25Uc)
> Tahan gempa yang kuat
> kebisingan yang lebih rendah
> Peningkatan kekuatan terminal
> Torsi permanen, instalasi andal
> Hemat dan hemat ruang
> Mudah dipasang, menghemat waktu
> Mudah dirawat dan menghemat biaya
| Product Series | Metal MEC |
|---|---|
| product name | AC Contactor |
| product type | Contactor |
| Product short name | GMC |
| Contactor application area | Applied to AC loads with a power factor greater than or equal to 0.95 Squirrel cage motor for switching on and off normal start |
| Use category | AC-3 AC-1 AC-4 |
| Number of poles | 3P |
| Power pole contact composition | 3 NO |
| Rated working voltage [Ue] | Power circuit: <= 690 V AC 25...400 Hz Power circuit: <= 300 V DC |
| Rated operating current [Ie] | 18 A 60 °C) on <= 440 V AC AC-3 Applicable power circuit 32 A 60 °C) on <= 440 V AC AC-1 for power supply circuit |
| Motor power (kW) | 4 kW on 220...230 V AC 50/60 Hz (AC-3) 7.5 kW on 380...400 V AC 50/60 Hz (AC-3) 9 kW on 415...440 V AC 50/60 Hz (AC-3) 10 kW on 500 V AC 50/60 Hz (AC-3) 10 kW on 660...690 V AC 50/60 Hz (AC-3) 4 kW on 400 V AC 50/60 Hz (AC-4) |
| Motor power HP (UL / CSA) | 1 hp on 115 V AC 50/60 Hz for 1-phase motors 3 hp on 230/240 V AC 50/60 Hz for 1-phase motors 5 hp on 200/208 V AC 50/60 Hz for 3-phase motors 5 hp on... 230/240 V AC 50/60 Hz for 3-phase motors 10 hp on 460/480 V AC 50/60 Hz for 3-phase motors 15 hp on 575/600 V AC 50/60 Hz for 3-phase motors |
| Control loop characteristics | AC on 50/60 Hz |
| Control loop voltage | 230 V AC 50/60 Hz |
| Auxiliary contact type | 1 NO + 1 NC |
| Rated impulse withstand voltage [Uimp] | 6 kV in accordance with IEC 60947 |
| Overvoltage category | III |
| Conventional heating current [Ith] | 10 A on <60 °C for signal circuit 32 A on <60 °C for power supply circuit |
| Rated turn-on capability [Irms] | 140 A AC suitable signal circuit in accordance with IEC 60947-5-1 250 A DC suitable signal loop in accordance with IEC 60947-5-1 300 A on 440 V applicable power supply circuit in accordance with IEC 60947 |
| Rated breaking capacity | 300 A on 440 V applicable power supply circuit in accordance with IEC 60947 |
| Rated short-time withstand current [Icw] | 145 A on <40 °C - 10 s for power supply circuit 240 A on <40 °C - 1 s for power supply circuit 40 A on <40 °C - 10 minutes for power circuit 84 A on <40 °C - 1 minute for power circuit 100 A - 1 s for signal circuits 120 A - 500 ms Applicable signal loop 140 A - 100 ms for signal circuits |
| Fuses used with relays | 10 A gG Applicable signal circuit in accordance with IEC 60947-5-1 50 A gG on...<= 690 V with type 1 for power supply circuit 35 A gG on ...<= 690 V with type 2 for power supply circuit |
| Average impedance | 2.5 mΩ - Ith 32 A 50 Hz for power supply circuits |
| Rated insulation voltage [Ui] | Power circuit: 690 V in accordance with IEC 60947-4-1 Power circuit: 600 V CSA certification Power circuit: 600 V UL certification Signal loop: 690 V in accordance with IEC 60947-1 Signal loop: 600 V CSA certified Signal circuit: 600 V UL certification |
| Electrical life | 1.65 kA2.s 18 A AC-3 Ue condition <= 440 V 1 kA2.s 32 A AC-1 Ue condition <= 440 V |
| Power consumption per pole | 2.5 W AC-1 0.8 W AC-3 |
| Safety cover | band |
| Installation method | Rail mounting Base plate installation |
| standard | CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508 |
