25A 12 Pole Terminal Block 230V 400V 660V Fixed Barrier Screw Plate Mount
Product Details
| Tegangan Terukur: | 230,400v | Suhu sekitar: | -40 ~ 90 derajat Celcius |
|---|---|---|---|
| Tegangan isolasi: | 660V | Install: | Pemasangan pelat sekrup |
| Menyoroti |
25a blok terminal 12 tiang,blok terminal 230v 12 tiang,blok terminal 400v 12 tiang |
||
Product Description
TB Series Fixed Barrier 25A 12 Pole Terminal Block 230V,400V,660V
Deskripsi Produk
Seri TB berlaku untuk sirkuit dengan arus bolak-balik 50Hz, tegangan pengenal tidak lebih dari 600V dan arus pengenal tidak lebih dari 100A untuk sambungan kabel.Standar: GB/T 14048.7 IEC 60947-7-1.
Meminta informasi
3.1 Perhatikan jenis, area sambungan atau arus, klasifikasi dan jumlah produk saat memesan.3.2 Blok terminal reguler harus dibentuk dengan blok tunggal.3.3 Persyaratan khusus lainnya harus diperhatikan.3.4 Contoh pemesanan: TB10003 5 Berarti model pemesanan adalah TB, arus pengenal adalah 100A, dan memiliki 3 grup dan kuantitas adalah 5.
|
TB-15 Fixed Barrier 15A 3 Pole Terminal Block |
|
Informasi Produk Umum |
|
|
Nomor barang: |
TB-1503 |
|
Peringkat: |
600V, 15A, 3 Tiang |
|
Ukuran: |
46,5*22.0*17.5mm (L*W*H) |
|
Ukuran kabel: |
2,0 mm2 / AWG 14 |
|
Ukuran Sekrup: |
M3 |
|
Dimensi [mm] |
||||
|
Nomor barang |
Tiang (P) |
Panjang (L) |
Lebar (W) |
Tinggi (H) |
|
TB-1503 |
3 |
46,5 mm |
22,0 mm |
17,5 mm |
|
TB-1504 |
4 |
55,5 mm |
||
|
TB-1506 |
6 |
73,5 mm |
||
|
TB-1512 |
12 |
128,5 mm |
||
|
TB-2512 Fixed Barrier 25A 12 Pole Terminal Block |
|
Informasi Produk Umum |
|
|
Nomor barang: |
TB-2512 |
|
Peringkat: |
600V, 25A, 3 Tiang |
|
Ukuran: |
147.0*28.0*19.0mm (L*W*H) |
|
Ukuran kabel: |
6,0 mm2 / AWG 10 |
|
Ukuran Sekrup: |
M4 |
|
Dimensi [mm] |
||||
|
Nomor barang |
Tiang (P) |
Panjang (L) |
Lebar (W) |
Tinggi (H) |
|
TB-2503 |
3 |
50,5 mm |
28,0 mm |
19,0 mm |
|
TB-2504 |
4 |
61,5 mm |
||
|
TB-2506 |
6 |
82,5 mm |
||
|
TB-2512 |
12 |
147,0 mm |
||
|
Lembar spesifikasi |
||||||||
|
Gambar Produk Seri TB |
|
|||||||
|
Nomor barang |
TB-1503 |
TB-1504 |
TB-1506 |
TB-1512 |
TB-2503 |
TB-2504 |
TB-2506 |
TB-2512 |
|
spesifikasi elektrik |
|
|||||||
|
Nilai Volt [V] |
600V |
|||||||
|
Nilai Saat Ini [A] |
15A |
25A |
||||||
|
Ukuran Kawat [mm2] |
2,0 mm2 |
6,0 mm2 |
||||||
|
Ukuran Kawat [AWG] |
AWG 14 |
AWG 10 |
||||||
|
Bahan |
|
|||||||
|
Bahan Isolator |
PC |
|||||||
|
Warna |
Hitam (Putih, Biru, Merah, Coklat, ...) |
|||||||
|
Kelas Terbelakang Api |
UL94V-2 (UL94V-0) |
|||||||
|
Suhu Operasi [℃] |
-40℃+110℃ (Maks: +220℃) |
|||||||
|
Konduktor |
Kuningan, Berlapis Nikel (Tembaga, Berlapis Timah) |
|||||||
|
Ukuran |
Tutup Pelindung dilengkapi dengan blok terminal secara gratis.Tidak diperlukan Strip Penanda.(Dicetak Dicetak.) |
|||||||
|
Panjang Total L [mm] |
46,5 |
55.5 |
73.5 |
128.5 |
50.5 |
61.5 |
82,5 |
147,5 |
|
Ref.Panjang L1 [mm] |
36,5 |
45.5 |
63.5 |
118.0 |
40.0 |
51.0 |
72.0 |
136.0 |
|
Celah A [mm] |
7.0 |
8.0 |
||||||
|
Nada B [mm] |
9.0 |
10.5 |
||||||
|
Lebar W [mm] |
22.0 |
28.0 |
||||||
|
Tinggi H [mm] |
17.5 |
19.0 |
||||||
|
Sekrup (C) (Baja, Berlapis Seng) |
M3 |
M4 |
||||||
|
Nilai Torsi [Nm] |
0,5 |
1.2 |
||||||
|
Nilai Torsi [in-lb] |
4.4 |
10.6 |
||||||
|
Polandia |
3 |
4 |
6 |
12 |
3 |
4 |
6 |
12 |
|
Lembar spesifikasi |
||||||||
|
Gambar Produk Seri TB |
|
|||||||
|
Nomor barang |
TB-2503L |
TB-2504L |
TB-2506L |
TB-2512L |

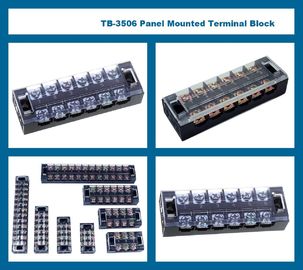

TB-3503 |
TB-3504 |
TB-3506 |
TB-3512 |
|
spesifikasi elektrik |
|
|||||||
|
Nilai Volt [V] |
600V |
|||||||
|
Nilai Saat Ini [A] |
25A |
35A |
||||||
|
Ukuran Kawat [mm2] |
6,0 mm2 |
10,0 mm2 |
||||||
|
Ukuran Kawat [AWG] |
AWG 10 |
AWG 8 |
||||||
|
Bahan |
|
|||||||
|
Bahan Isolator |
PC |
|||||||
|
Warna |
Hitam (Putih, Biru, Merah, Coklat, ...) |
|||||||
|
Kelas Terbelakang Api |
UL94V-2 (UL94V-0) |
|||||||
|
Suhu Operasi [℃] |
-40℃~+110℃ (Maks: +220℃) |
|||||||
|
Konduktor |
Kuningan, Berlapis Nikel (Tembaga, Berlapis Timah) |
|||||||
|
Ukuran |
Tutup Pelindung dilengkapi dengan blok terminal secara gratis.Tidak diperlukan Strip Penanda.(Dicetak Dicetak.) |
|||||||
|
Panjang Total L [mm] |
56.0 |
68.0 |
92.0 |
164.0 |
56.0 |
68.0 |
92.0 |
164.0 |
|
Ref.Panjang L1 [mm] |
45.0 |
57.0 |
81.0 |
153.0 |
45.0 |
57.0 |
81.0 |
153.0 |
|
Celah A [mm] |
10.0 |
|||||||
|
Nada B [mm] |
12.0 |
|||||||
|
Lebar W [mm] |
30.0 |
|||||||
|
Tinggi H [mm] |
19.5 |
|||||||
|
Sekrup (C) (Baja, Berlapis Seng) |
M4 |
|||||||
|
Nilai Torsi [Nm] |
1.2 |
|||||||
|
Nilai Torsi [in-lb] |
10.6 |
|||||||
|
Polandia |
3 |
4 |
6 |
12 |
3 |
4 |
6 |
12 |
|
Kemasan |
|
50 pcs/kotak, 200 pcs/4 kotak/NW: 19,0kgs/karton |
