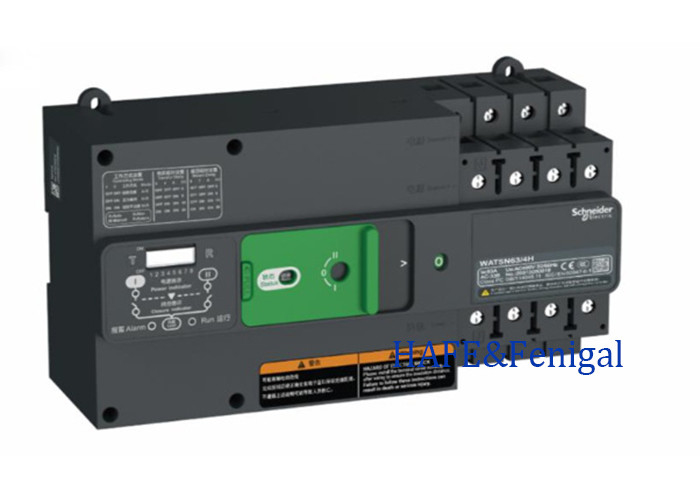

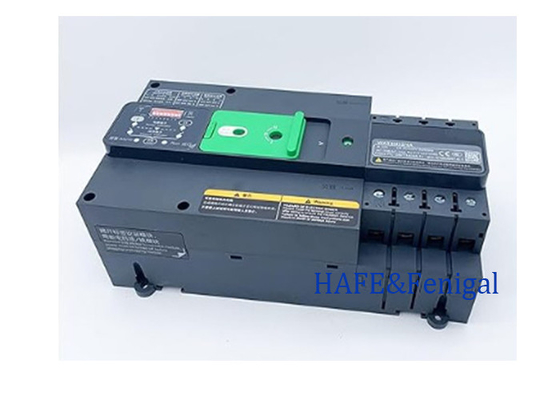

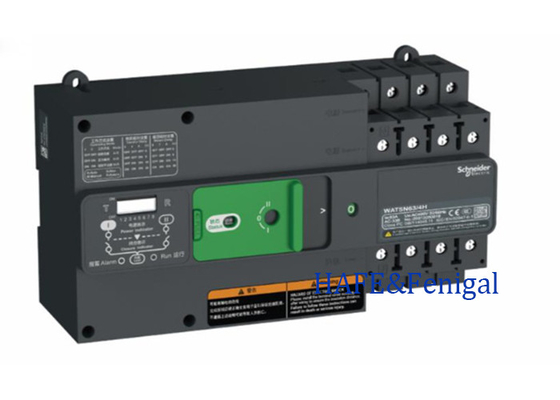

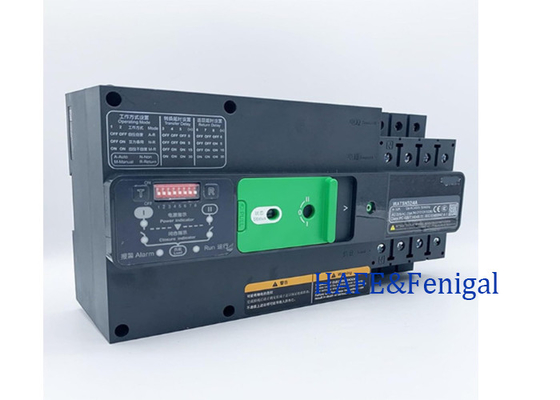

50/60Hz Kelas PC Otomatis Transfer Switch dengan Overcurrent Release dan Nominal Current 100-630A
Product Details
| Nilai tegangan isolasi (V): | 440 | Tekanan tahan impuls nominal (kV): | 6 |
|---|---|---|---|
| Nilai tegangan operasi ( ): | 50Hz | Jumlah tiang: | 3/4 |
| Daya tahan listrik (*): | AC50Hz 440V-Masuk | Mode operasi: | Operasi intermiten |
| Menyoroti |
Overcurrent Release PC Otomatis Transfer Switch,100-630A PC Switch Transfer Otomatis,50/60Hz PC Switch Transfer Otomatis |
||
Product Description
50/60Hz Kelas PC Switch Transfer Otomatis dengan Overcurrent Release dan Nominated Currentsewa 100-630A
| Bingkai | 100 | 160 | 250 | 630 | |
| Listrik operasi nominal (A) Ie AC-33B | 63 | 160 | 250 | 630 | |
| Jumlah tiang | 2,3,4 | 2,3,4 | 2,3,4 | 3,4 | |
| Posisi operasi | 3 | 3 | 3 | 3 | |
| Jenis kontrol | A,R | A,R | A,R | A,R | |
| Karakteristik listrik yang ditentukan oleh GB/T 14048.11 (IEC 60947-6-1) | |||||
| Tegangan isolasi nominal (V) | Dan | 690 | 800 | 800 | 800 |
| Nominal impuls tahan tegangan (V) | Uimp | 6000 | 8000 | 8000 | 8000 |
| Tegangan operasi nominal (V) | UE AC50/60Hz | 2P:220-240V3P, 4P:380-415V | 2P:220-240V3P, 4P:380-415V | 2P:220-240V3P, 4P:380-415V | 380-415V |
| Frekuensi operasi nominal (Hz) | f | 50/60 | 50/60 | 50/60 | 50/60 |
| Nomer daya tahan jangka pendek (kA/60ms) | Icw | 5 | 10 | 10 | 12.6 |
| Kapasitas pembuatan sirkuit pendek nominal (kA) | Icm | 7.65 | 17 | 17.24 | 25.55 |
| Arus puncak (kA) | Ipeak | 16.24 | 20.84 | 20.04 | 33.91 |
| Daya tahan mekanik | 8000 | 10000 | 10000 | 10000 | |
| Daya tahan listrik | 6000 | 6000 | 6000 | 6000 | |
| Pemasangan dan koneksi | |||||
| Metode pemasangan | Kereta api/plat dasar | Kereta api/plat dasar | Plat dasar | Plat dasar | |
| Metode kabel | Kabel | Bar flat-fading | Bar flat-fading | Bar flat-fading | |
| Perangkat bantu | |||||
| Di luar gembok | ■ | ■ | ■ | ■ | |
| Umpan balik posisi | □ | □ | ■ | ■ | |
| Tutup terminal | □ | □ | - | - | |
| Gembok rel | □ | □ | - | - | |
| Tutup isolasi terminal | ■ | ■ | - | - | |
| Layar isolasi antarfase | - | - | □ | □ | |
Catatan: ■ Standar □ Opsional (1) standar 230V/400V
Product Highlights
50/60Hz Kelas PC Switch Transfer Otomatis dengan Overcurrent Release dan Nominated Currentsewa 100-630A Kelas PC • Peralatan switch transfer berdasarkan perangkat switch mekanik, yang tidak memerlukan tenaga listrik untuk menjaga kontak utama terbuka atau tertutup dan mampu membuat, membawa,dan arus ...
