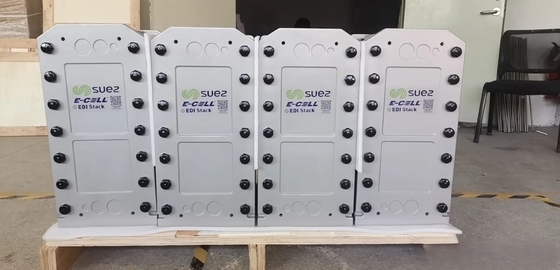

Tumpukan EDI Veolia MK-3 15 GPM untuk Air Ultra Murni Semikonduktor
Product Details
| MK-3 Maximum water production (m3 /hr): | 4.5 | MK-3 Minimum water production (m3 /hr): | 1.6 |
|---|---|---|---|
| MK-3 Recovery: | up to 96% | MK-3 Shipping Weight of this stack: | 100 kg (220 lbs) |
| MK-3 Hardness (ppm as CaCO3 ): | <1.0 | Sodium of this stack: | ≤ 3 ppb |
| Boron of this stack: | As low as 0.08 ppb | pH Range: | 4 to 11 |
| Color: | ≤ 5 APHA | Resistivity: | ≥ 16 MOhm-cm |
| Module Application: | Industrial High Purity Water Preparation | ||
| Menyoroti |
Tumpukan EDI Veolia MK-3,Tumpukan EDI untuk air semikonduktor,Modul EDI air ultra murni |
||
Product Description
| Produksi Air Maksimum | 4.5 m³/jam |
| Produksi Air Minimum | 1.6 m³/jam |
| Tingkat Pemulihan | Hingga 96% |
| Berat Pengiriman | 100 kg (220 lbs) |
| Kekerasan (sebagai CaCO₃) | <1.0 ppm |
| Kandungan Natrium | ≤ 3 ppb |
| Kandungan Boron | Serendah 0.08 ppb |
| Rentang pH | 4 hingga 11 |
| Warna | ≤ 5 APHA |
| Resistivitas | ≥ 16 MΩ-cm |
| Aplikasi | Persiapan Air Kemurnian Tinggi Industri |
- Regenerasi elektrokimia in-situ menghilangkan regenerasi kimia asam/basa
- Operasi tiga saluran berlawanan arah mengurangi risiko penskalaan (penurunan tekanan 1.4-3.4 bar)
- Operasi bebas bahan kimia sesuai dengan standar ISO 14001
- Desain modular yang ringkas (kedalaman 29-74 cm) menghemat ruang
- Kompatibel dengan sanitasi termal (air panas 85°C untuk ≥160 siklus)
- Pengurangan energi 20% dibandingkan dengan sistem EDI konvensional
| Parameter | Nilai |
|---|---|
| Aliran Nominal | 3.4 m³/jam (15 gpm) |
| Rentang Laju Aliran | 1.7 - 4.5 m³/jam (7.0 - 20 gpm) |
| Dimensi (P x T x D) | 30 cm x 61 cm x 54 cm (12" x 24" x 22") |
| Resistivitas | ≥ 16 MΩ-cm |
| Penghilangan Natrium | ≥ 99.9% |
| Penghilangan Silika | Hingga 99% |
| Penghilangan Boron | Hingga 96% |
| Tegangan Operasi | 0-300 VDC |
| Arus Operasi | 0-5.2 ADC |
| Tekanan Masuk | ≤ 6.9 bar (100 psi) |
- Air ultrapure untuk pembilasan chip semikonduktor dan mikroelektronik
- Air umpan boiler demineralisasi untuk pembangkit listrik dan fasilitas industri
- Bersertifikasi CE, RoHS, CSA, dan EAC
- Manufaktur yang sesuai dengan ISO 9001 dan ISO 14001
- Bersertifikasi UKCA
- Bersertifikasi Halal oleh IFANCA®
Product Highlights
Tumpukan EDI Veolia MK-3 15 GPM untuk Air Ultra Murni dalam Aplikasi Semikonduktor dan Tampilan Panel Datar Spesifikasi Produk Produksi Air Maksimum 4.5 m³/jam Produksi Air Minimum 1.6 m³/jam Tingkat Pemulihan Hingga 96% Berat Pengiriman 100 kg (220 lbs) Kekerasan (sebagai CaCO₃)
