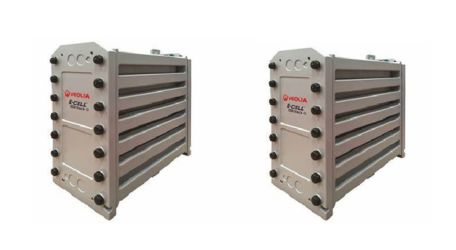

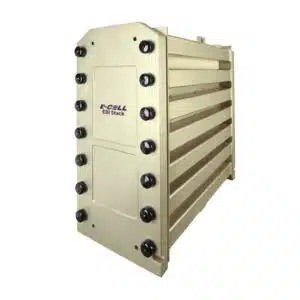

Veolia E-Cell MK-9 EDI Module For High-Flow And Robust Design

Veolia E-Cell MK-9 EDI Module For High-Flow And Robust Design

  • Veolia E-Cell MK-9 EDI Module For High-Flow And Robust Design
  • Veolia E-Cell MK-9 EDI Module For High-Flow And Robust Design
  • Veolia E-Cell MK-9 EDI Module For High-Flow And Robust Design
Veolia E-Cell MK-9 EDI Module For High-Flow And Robust Design
Detail produk:
Tempat asal: CINA
Nama merek: VEOLIA
Sertifikasi: CE
Nomor model: MK-9
Dokumen: Veolia EDI catalog.pdf
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 pc
Harga: Dapat dinegosiasikan
Kemasan rincian: Pengepakan Ekspor Standar
Waktu pengiriman: 5- 8 hari kerja
Syarat-syarat pembayaran: T/T, Western Union
Menyediakan kemampuan: 60000 unit per bulan
Kontak
Semua produk
Kotak Distribusi Pencahayaan (33)
Kotak Distribusi Listrik (33)
Kotak Distribusi Tahan Cuaca (48)
Kotak Kandang Fiberglass (60)
Sakelar Transfer Otomatis ATS (68)
Modul EDI (139)
Modul Membran Ultrafiltrasi (57)
Pemutus Sirkuit Industri (85)
sistem pv surya (72)
Stasiun Pengisian EV Listrik (21)
Relai Pengaturan Waktu Modular (12)
Relay Kontrol Otomatisasi (64)
Trafo Pengatur Tegangan (16)
Balon Penerangan Film (136)
Moon Balloon Light (131)
Balon LED Tripod (115)
Menara Cahaya Inflatable (62)
Aksesori Blok Terminal (6)
Detil Deskripsi produk
Dimensi tumpukan MK-9 (cm sebagai lebar x tinggi x kedalaman): 30 x 61 x 74 MK-9 Total Anion yang dapat ditukar (ppm sebagai CaCO3): <13
Konduktivitas tumpukan MK-9 (μs/cm): <22 MK-9 Stack PH: 4-11
Suhu tumpukan MK-9 (° C): 4.4-40 MK-9 Stack Hardness (ppm sebagai CaCO3): <1.0
Penurunan tekanan: 2.4–3.4 bar (35–50 psi) Tekanan saluran masuk: ≤ 6,9 bar (100 psi)
Amperage: 0–5.2 ADC Voltase: 0–400 VDC
Pemulihan: Hingga 97% Aplikasi: Desain aliran tinggi dan kuat

Veolia E-Cell MK-9 EDI Module For High-Flow And Robust Design

The Veolia E-Cell MK-9 Electrodeionization (EDI) Module is designed for high-flow, continuous production of ultra-pure water in industrial applications, capable of delivering flows up to ​​10 m³/h​​ (44 GPM) with resistivity ​​≥16 MΩ·cm​​ and silica removal to ​​≤5 ppb​​. It eliminates the need for chemical regeneration, reducing operational costs and environmental impact. Ideal for power generation, semiconductors, pharmaceuticals, and microelectronics, the MK-9 operates at recovery rates up to ​​97%​​ and supports hot-water sanitization (up to ​​85°C​​) for stringent hygiene requirements. Its robust construction ensures stability under varying feedwater conditions, with compliance to CE, RoHS, and ISO 9001/14001 standards. The module integrates seamlessly into reverse osmosis (RO) systems for polishing permeate, offering scalability and minimal maintenance
Product Specifications
Attribute Value
Stack Name MK-9
Dimensions (cm) 30 x 61 x 74 (W x H x D)
Total exchangeable anions (ppm as CaCO3) <13
Conductivity (μS/cm) <22
pH Range 4-11
Temperature Range (°C) 4.4-40
Hardness (ppm as CaCO3) <1.0
Silica (ppm as SiO2) <1.0
Typical designed water production (m3/hr) 6.0-10.0
Recovery Rate Up to 97%
Voltage 0–400 VDC
Typical Applications Solar Photovoltaics And Green Hydrogen
Product Overview
The Veolia MK-9 EDI Stack delivers 35 GPM of ultrapure water for demanding industrial applications. E-Cell EDI technology, based on proven production practices, provides industry-leading product water quality, energy efficiency, and reliability.
Key Features & Benefits
  • Optimized Flow Rate (8.0 m³/h): Designed for mid-to-large-scale industrial systems requiring reliable high-purity water production
  • Veolia/Suez Advanced EDI Technology: Incorporates next-generation MK-9 membrane and spacer design for superior ion removal efficiency
  • Zero Chemical Regeneration: Eliminates hazardous acid/caustic regeneration chemicals, reducing operational costs and environmental impact
  • Enhanced Energy Efficiency: Optimized stack hydraulics minimize power consumption per liter of purified water
  • Robust Design & Reliability: Engineered for 24/7 continuous operation with high resistance to scaling and fouling
  • Smart Operation & Integration: Compatible with modern PLC/SCADA systems for real-time monitoring
Technical Parameters
Parameter Value
Brand Veolia EDI
Inlet Pressure 6.9 bar (100 psi)
Max Temperature 40°C (104°F)
Pressure Drop 2.4-3.4 bar (35-50 psi)
Flow Rate 8.0m3/h
Shipping Weight 165 kg (364 lbs)
Key Advantages
  • Continuously produces ultrapure water of mixed bed water quality
  • No acid and base regeneration required
  • Guaranteed leak-proof design
  • Simplified system design with no brine injection or concentrated water circulation
Typical Applications
  • Power generation (NOx, boiler feed water)
  • Electronics manufacturing
  • General industrial applications
  • Pharmaceutical & Biotech (WFI pre-treatment)
  • Microelectronics & Semiconductor Manufacturing
  • Laboratory Ultra-Pure Water Systems
Veolia E-Cell MK-9 EDI Module For High-Flow And Robust Design 0 Veolia E-Cell MK-9 EDI Module For High-Flow And Robust Design 1 Veolia E-Cell MK-9 EDI Module For High-Flow And Robust Design 2
Why Choose Veolia MK-9 EDI?
As the direct successor to Suez's industry-leading E-Cell™ technology, the MK-9 stack leverages Veolia's global expertise in water treatment. It delivers unmatched operational efficiency, sustainability, and reliability for demanding 8.0 m³/h ultrapure water applications, backed by Veolia's worldwide service and support network.
